Axisflying focuses on user experience and carefully studies user sore points. In FPV imaging systems, we keep absorbing user feedback and optimizing product performance. Axisflying NAJA Camera adopts professional low-light black-light technology, super WDR, and wide-angle design to provide pilots with clear, stable, and high-quality analog FPV vision in bright and dark environments.
Feature

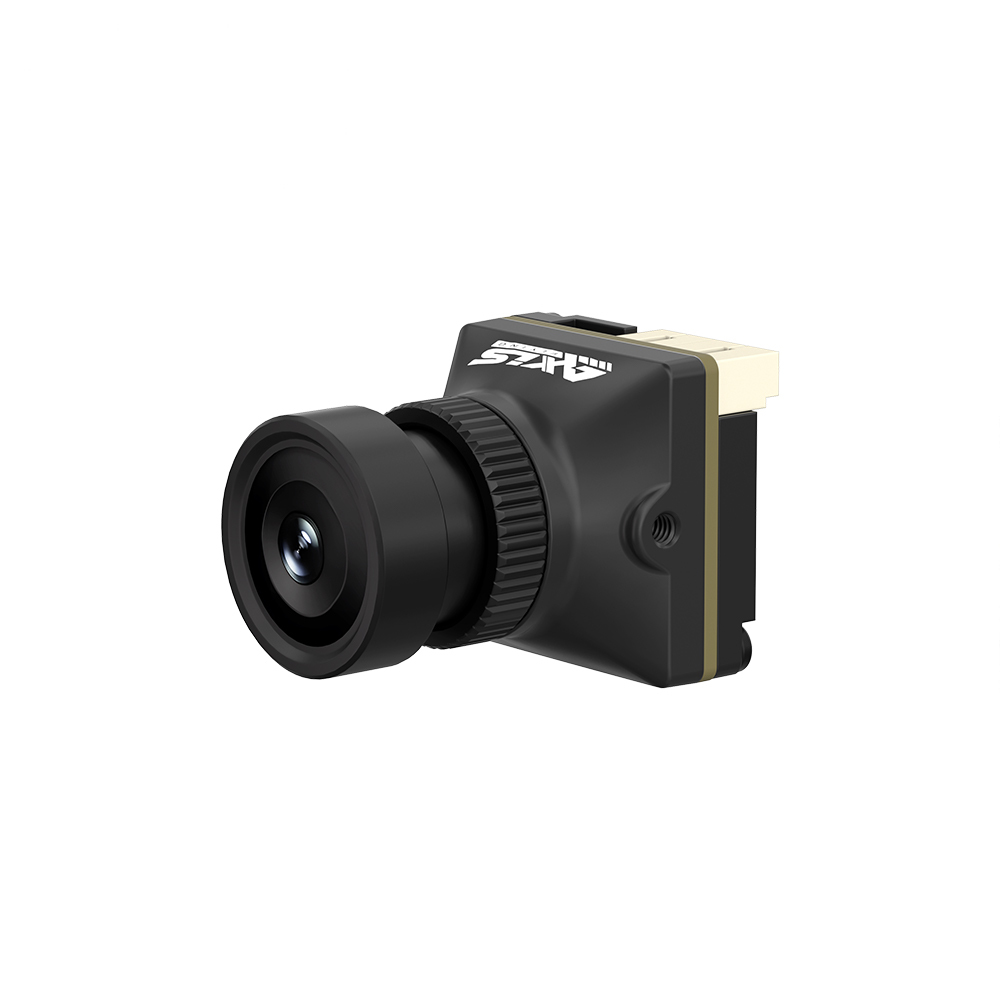

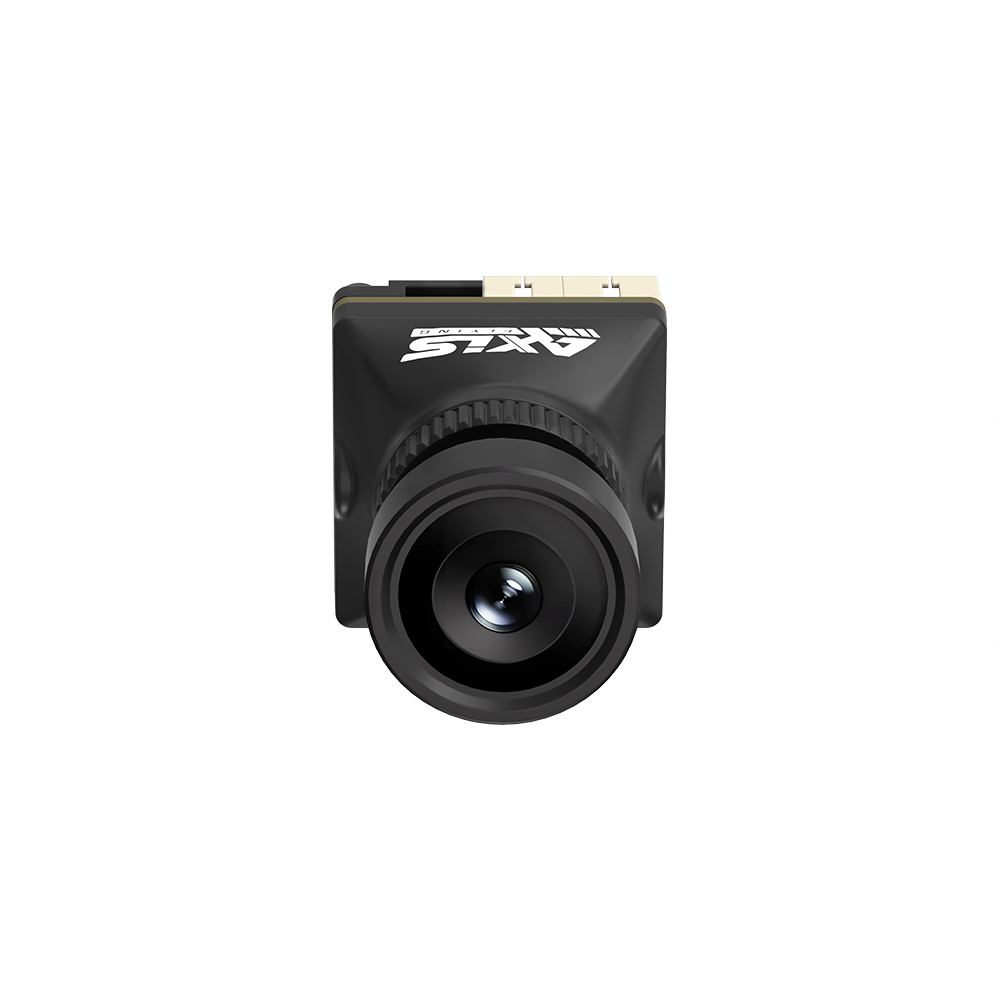

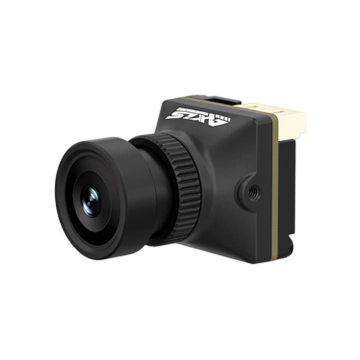

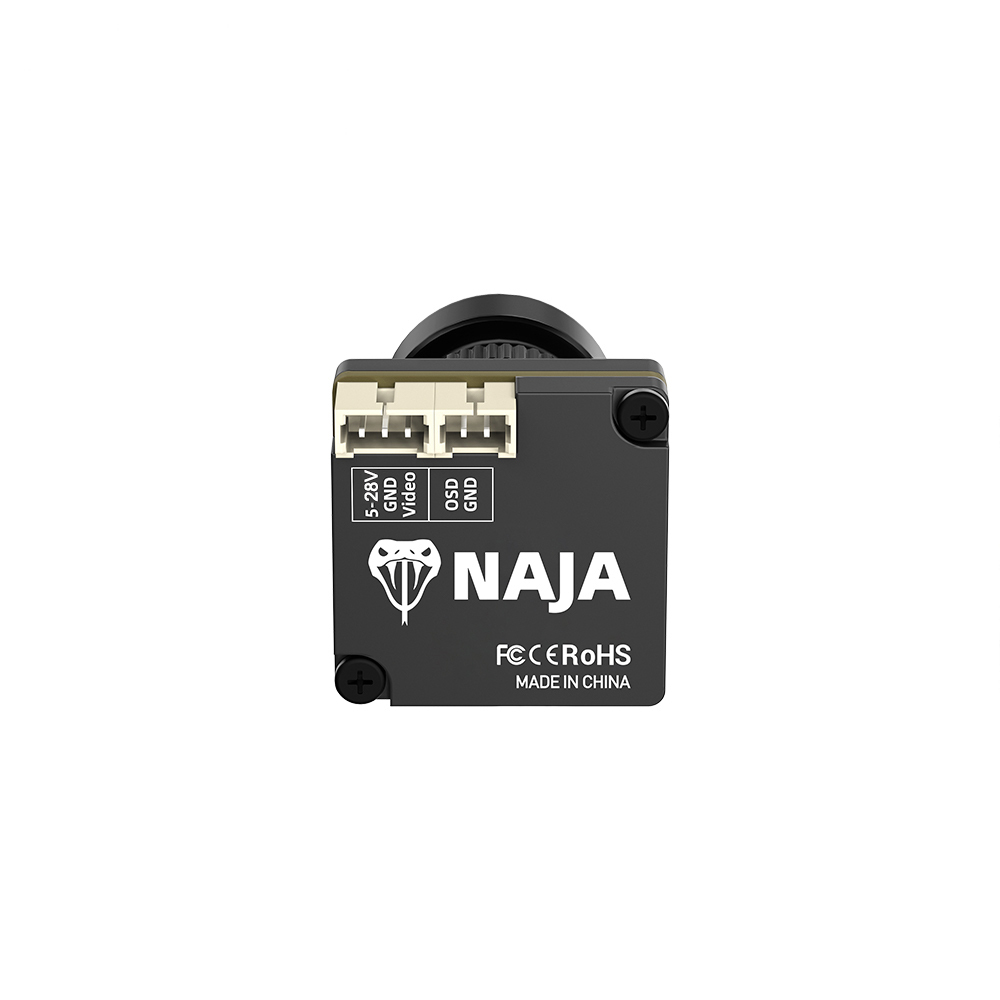

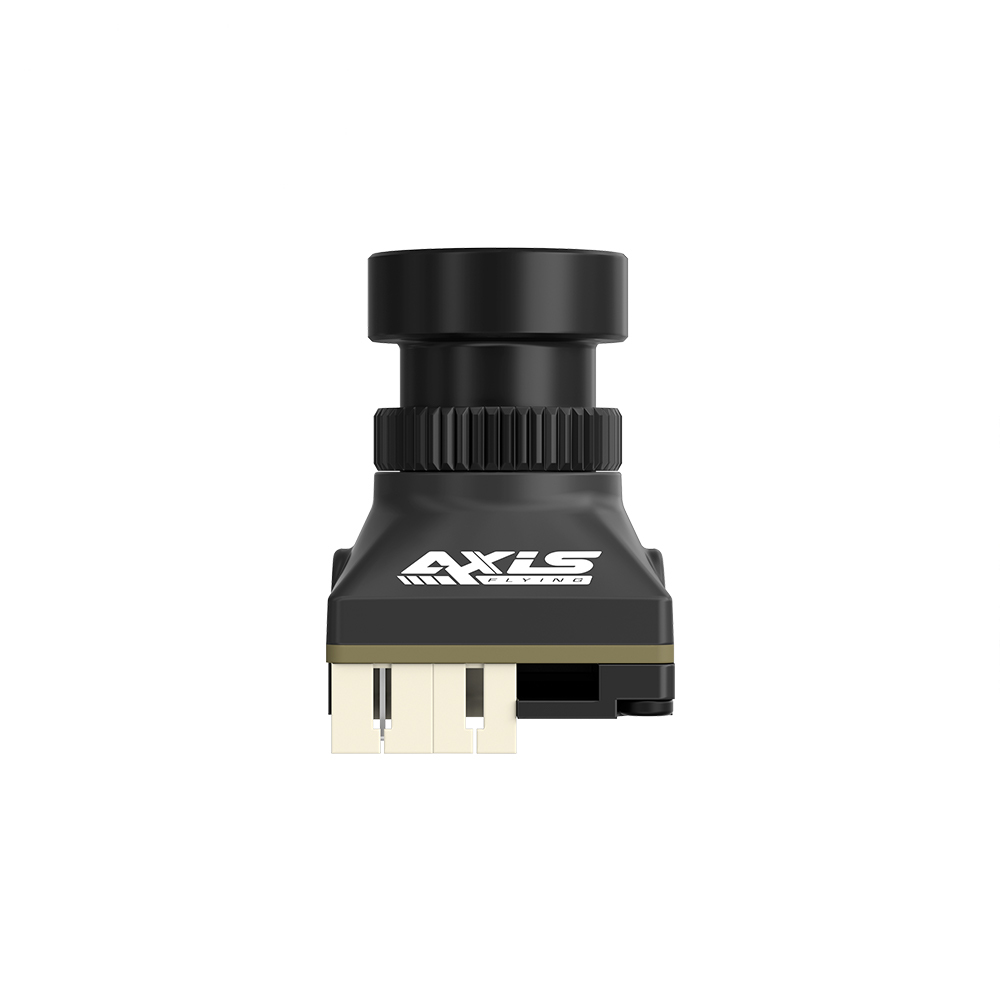

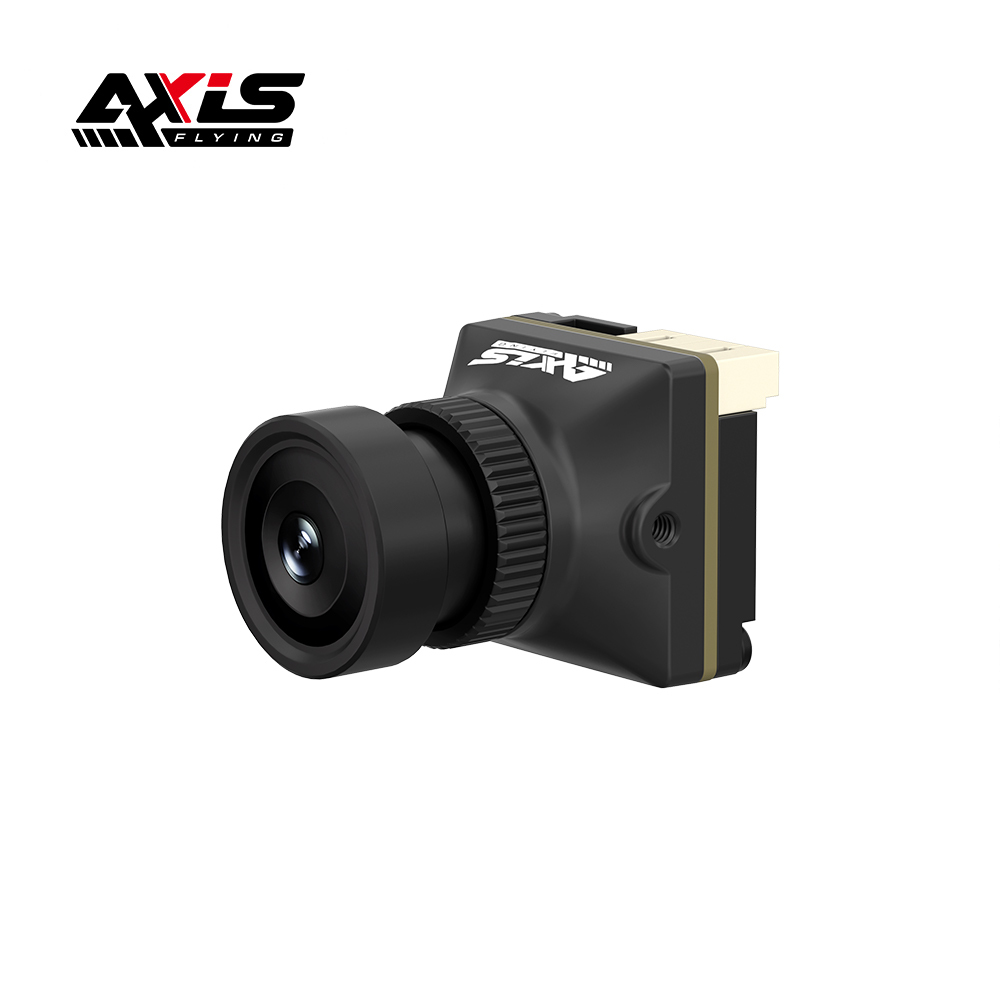

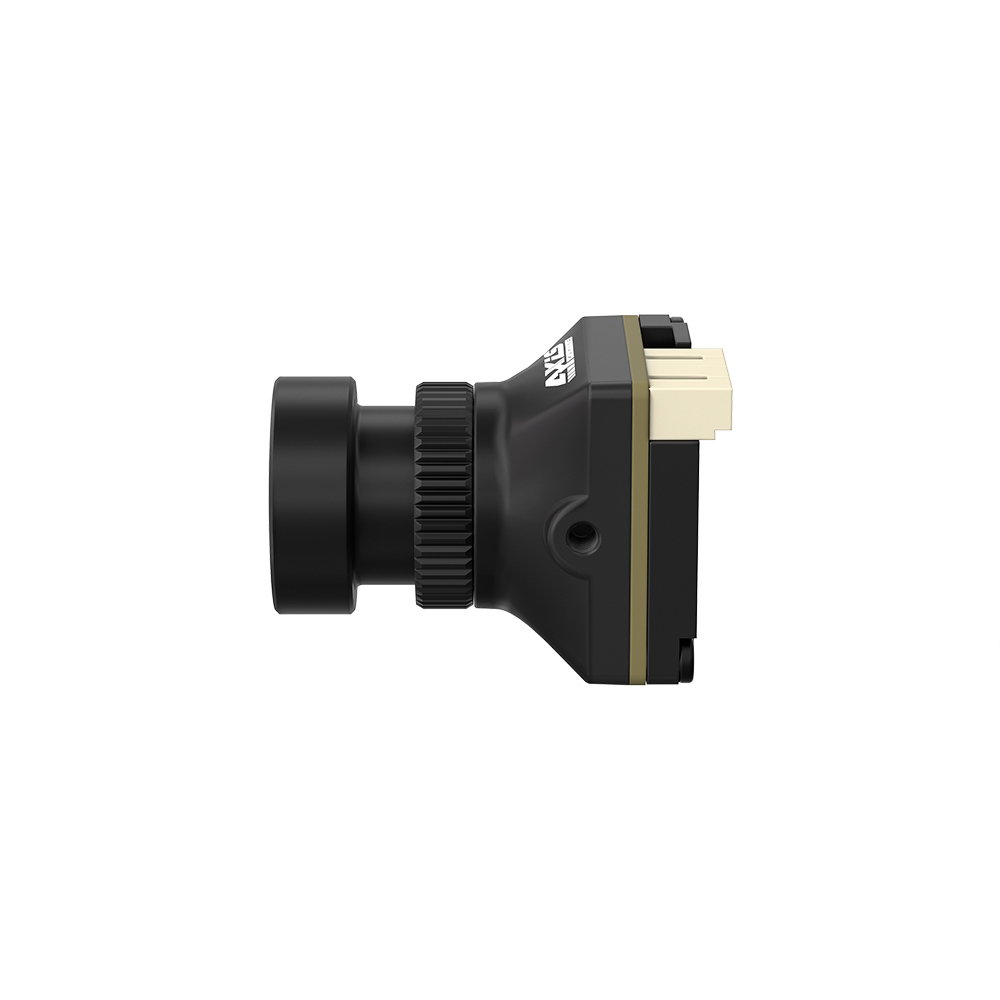

NAJA Camera is a high-performance 1500TVL analog FPV camera, specially designed for DIY FPV drones and freestyle flight.
Built-in 1/1.8" high-sensitivity sensor, with 0.00001 Lux ultra-low light capability, clear imaging day and night.
Equipped with Super WDR (HDR) wide dynamic range, effectively suppresses glare and backlight, restores shadow and highlight details.
1500TVL high resolution with 125° super wide field of view, large view and stable picture for FPV control.
Wide voltage input DC 5V–28V, compatible with 2S–6S battery systems, strong adaptability.
Supports NTSC / PAL dual system, auto day/night mode, color/black-and-white switching.
Built-in 3D-DNR digital noise reduction, effectively reduces image noise and improves picture clarity.
Full-function OSD menu control, adjustable brightness, contrast, sharpness, saturation, white balance, etc.
Compact size 19×19mm (M2), standard installation, compatible with most FPV frames.
Light weight only 6.0g, suitable for small FPV drones and DIY builds.
Recommended configuration
Model: NAJA 1500TVL FPV Camera
Sensor: 1/1.8"
Resolution: 1500TVL
Minimum illumination: 0.00001 Lux
FOV: 125°
Lens: 4.0mm
Video output: CVBS
Video mode: NTSC & PAL
WDR: Super WDR (HDR)
DNR: 3D-DNR
Power supply: DC 5V–28V
Weight: 6.0g
Dimensions: 19×19mm (M2)
Operating temperature: -20°C ~ +70°C
Specifications
Name: Axisflying 1500TVL FOV125° NAJA Camera
Sensor: 1/1.8"
Resolution: 1500TVL
Signal-to-noise ratio: >38dB
Video output: CVBS
Video system: NTSC & PAL
Lens: 4.0mm
FOV: 125°
Minimum illumination: 0.00001 Lux
WDR: Super WDR (HDR)
Digital noise reduction: 3D-DNR
Day/night mode: Color / AR Black Light / Auto
Aspect ratio: 16:9 / 4:3
OSD menu: Supported
Exposure: Electronic shutter / AGC / Brightness
White balance: Auto tracking
Language: CN, EN, DE, IT, RU, JP
Power supply: DC 5V–28V
Weight: 6.0g
Dimensions: 19×19mm (M2)
Operating temperature: -20°C ~ +70°C
